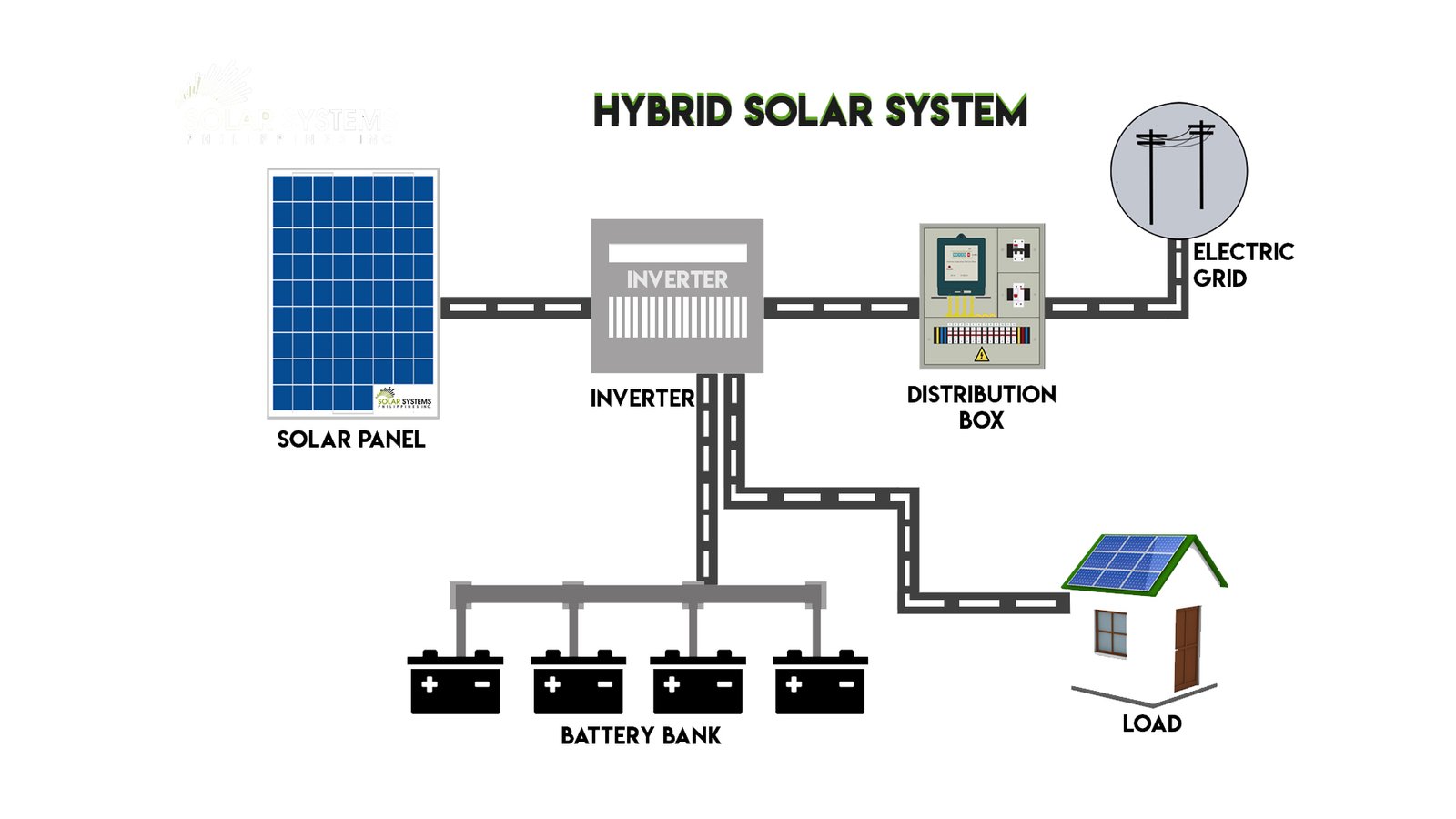

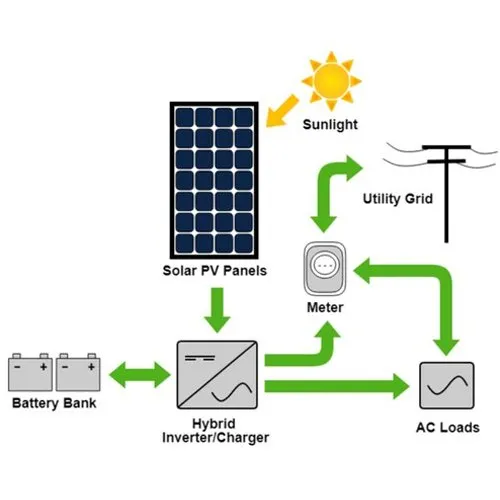

Solar Energy Generation: Hybrid solar systems utilize photovoltaic (PV) panels to capture sunlight and convert it into electricity during the day. The solar panels generate direct current (DC) electricity, which is then converted into alternating current (AC) electricity using an inverter.

Battery Storage: A crucial component of hybrid systems is energy storage. Excess electricity generated by the solar panels during the day is stored in batteries for later use. Common types of batteries used in hybrid systems include lithium-ion, lead-acid, and saltwater batteries. Lithium-ion batteries are popular due to their high energy density, efficiency, and long lifespan.

Grid Connection (Optional): Hybrid solar systems can be connected to the electrical grid. This allows for two-way energy flow: surplus electricity generated by the solar panels can be exported to the grid, and electricity can be drawn from the grid when solar generation is insufficient. Grid connection provides additional flexibility and ensures a reliable power supply, especially during periods of high energy demand or low sunlight.

Backup Generator (Optional): Some hybrid systems include a backup generator, such as a diesel generator or a natural gas generator, to provide additional power during extended periods of low sunlight or when battery storage is depleted. The generator automatically starts and provides electricity when the battery capacity falls below a certain threshold, ensuring uninterrupted power supply.

Hybrid Controller: A hybrid solar controller or energy management system coordinates the operation of various components in the system, including solar panels, batteries, grid connection, and backup generator. The controller optimizes energy flow, prioritizes power sources based on availability and cost, and ensures efficient operation of the system.
